SPECIALIZED

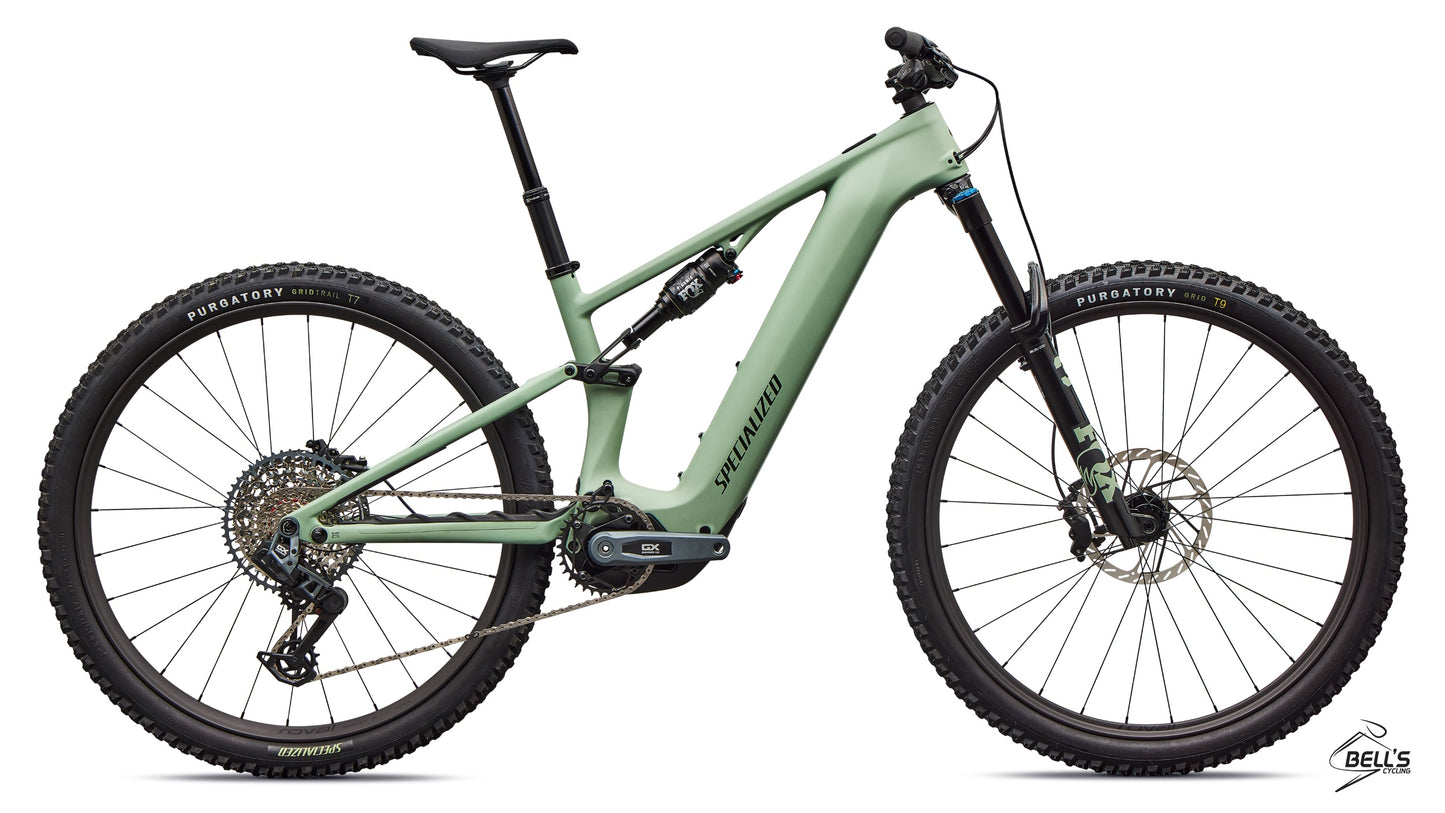

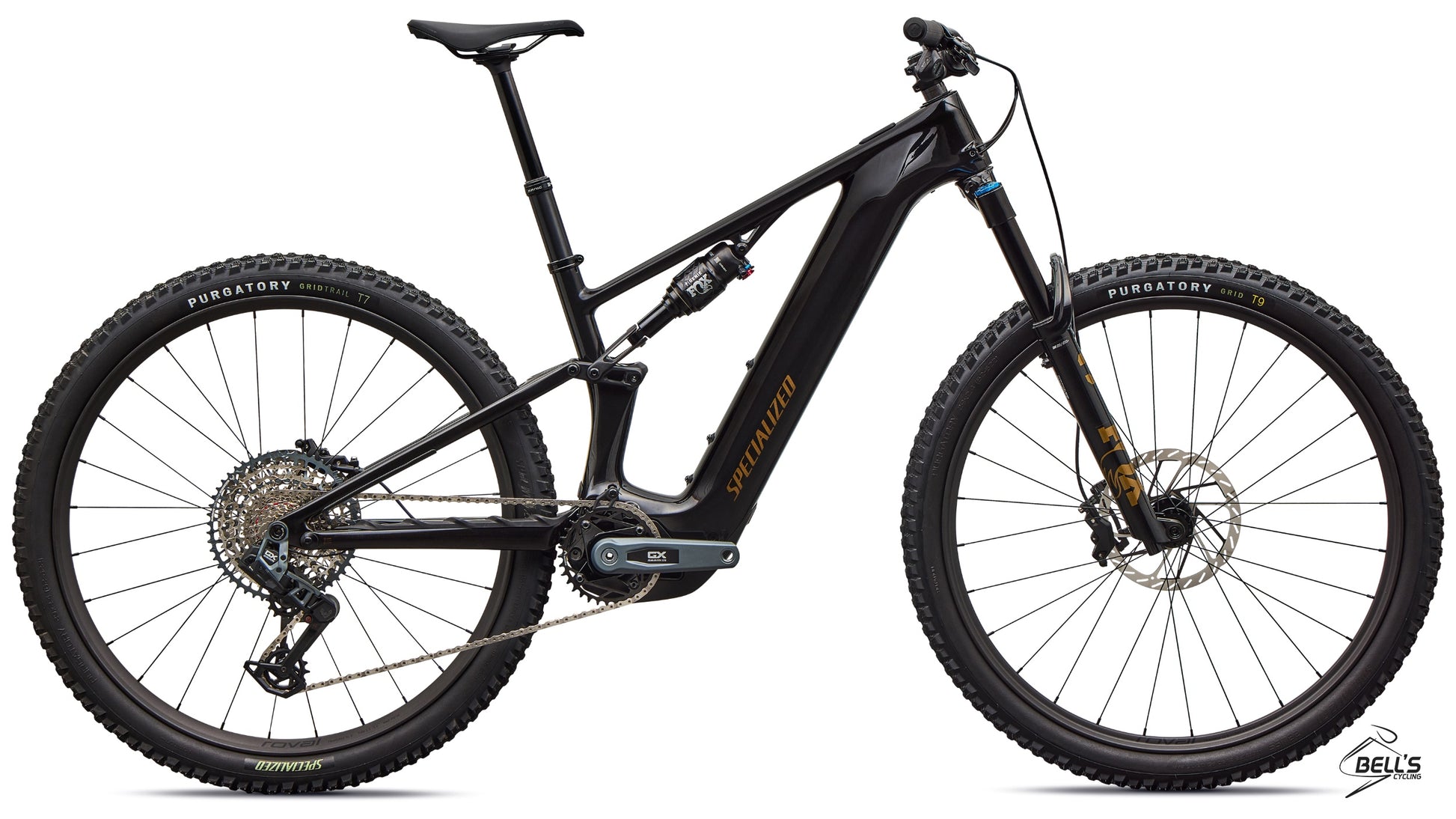

Turbo Levo R Expert

SKU:95226-3004

R 200,000.00

~~R 160,000.00~~ R 200,000.00

Sale Sold out

Taxes included.

Color Gloss Carbon / Burnt Gold Metallic Satin Pistachio / Dark Moss Green

Size S2 S3 S4 S5 S6

Quantity

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

SuperNatural Power, Agility, and Range

Levo R

Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, Levo R channels the SuperNatural power of Levo 4 but sheds its manners. Like a rally car unleashed on dirt, you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean.<br>This is Electric Rally.

At a Glance

Use

Full Power Electric Rally

E-System

Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender

Frame

FACT 11m Carbon, Geo Adj & SWAT Storage

Suspension

Front: 140mm FOX 36 SL Performance Elite GRIP X<br>Rear: 130mm GENIE - FOX FLOAT Performance Elite

Drivetrain

SRAM GX Transmission

Wheels

Travese SL2 w/ I9 1/1 Hubs

View full details

Technical Specifications

E-Bike

Battery

840Wh battery

UI/Remote

Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Motor

Specialized 3.1 Motor, 101Nm torque, 666W power

Charger

Specialized 4amp charger

Frameset

Seat Binder

Alloy, 38.6mm

Frame

FACT 11m Carbon, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel

Suspension

Fork

FOX 36 SL Performance Elite, GRIP X Damper, HSC, LSC, LSR adjust, 140mm travel, 44mm offset, 15x110mm

Rear Shock

FOX FLOAT Performance Elite GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm

Brakes

Front Brake

SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor

Rear Brake

SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor

Drivetrain

Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel

Shift Levers

SRAM AXS POD Controller

Crankset

SRAM GX Alloy Crank, ISIS interface, 55mm chainline, 160mm

Rear Derailleur

SRAM GX Eagle AXS Transmission

Chain

SRAM GX Eagle Transmission 12-Speed Flattop Chain

Cassette

SRAM GX Transmission, XS 1275, 10-52t

Wheels & Tires

Rear Wheel

Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 1/1 Hub, 12x148mm, 32H, Sapim D-Light Spokes

Front Wheel

Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 1/1 Hub, 15x110mm, 28H, Sapim D-Light Spokes

Front Tire

Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4

Rear Tire

Specialized Purgatory, Grid Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)

Inner Tubes

Standard, Presta Valve

Cockpit

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Body Geometry Power Comp, steel rails

Handlebars

Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide

Grips

Specialized Trail Grips

SeatPost

X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset

Accessories

SWAT

SWAT internal downtube storage

Product Details

Product ID

223522

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight

21.76 kg (47 lb, 15.6 oz)

Weight Size

Geometry

	S1 - 27.5	S2 - 29	S3 - 29	S4 - 29	S5 - 29	S6 - 29
Crank Length	160	160	160	160	160	160
Handlebar Width	800	800	800	800	800	800
Stem Length	50	50	50	50	50	50
Saddle Width	155	155	143	143	143	143
Seatpost Length	125	125	150	170	190	190
Stack	602	607	616	630	644	657
Reach	400	420	450	475	500	525
Head-Tube Length	95	100	110	125	140	155
Head-Tube Angle	64.8	65	65	65	65	65
B-B Height (low)	339	339	339	339	339	339
B-B Drop	36	36	36	36	36	36
Trail	128	126	126	126	126	126
Fork Length (full)	550	550	550	550	550	550
Fork Rake/Offset	44	44	44	44	44	44
Front Center	716	736	770	801	833	863
Chain-Stay length	447	447	447	447	447	447
Wheelbase	1160	1181	1215	1246	1277	1309
Top-Tube Length (horizontal)	539	560	592	620	649	677
Bike Stand-Over Height	761	763	773	783	793	803
Seat-Tube Length	375	385	405	425	445	465
Seat-Tube Angle	77	77	77	77	77	77
Seat Post Max Insertion	292	312	210	227	249	271
Seat Post Min Insertion	80	80	80	80	80	80
Saddle Height for Effective ST Angle	645	690	735	780	825	870

Size Guide

Size Chart

Height (Cm)	Size
150-160	S1
157-173	S2
165-180	S3
173-188	S4
178-193	S5
188-203	S6

Height (In)	Size
59-63	S1
62-68	S2
65-71	S3
68-74	S4
70-76	S5
74-80	S6
