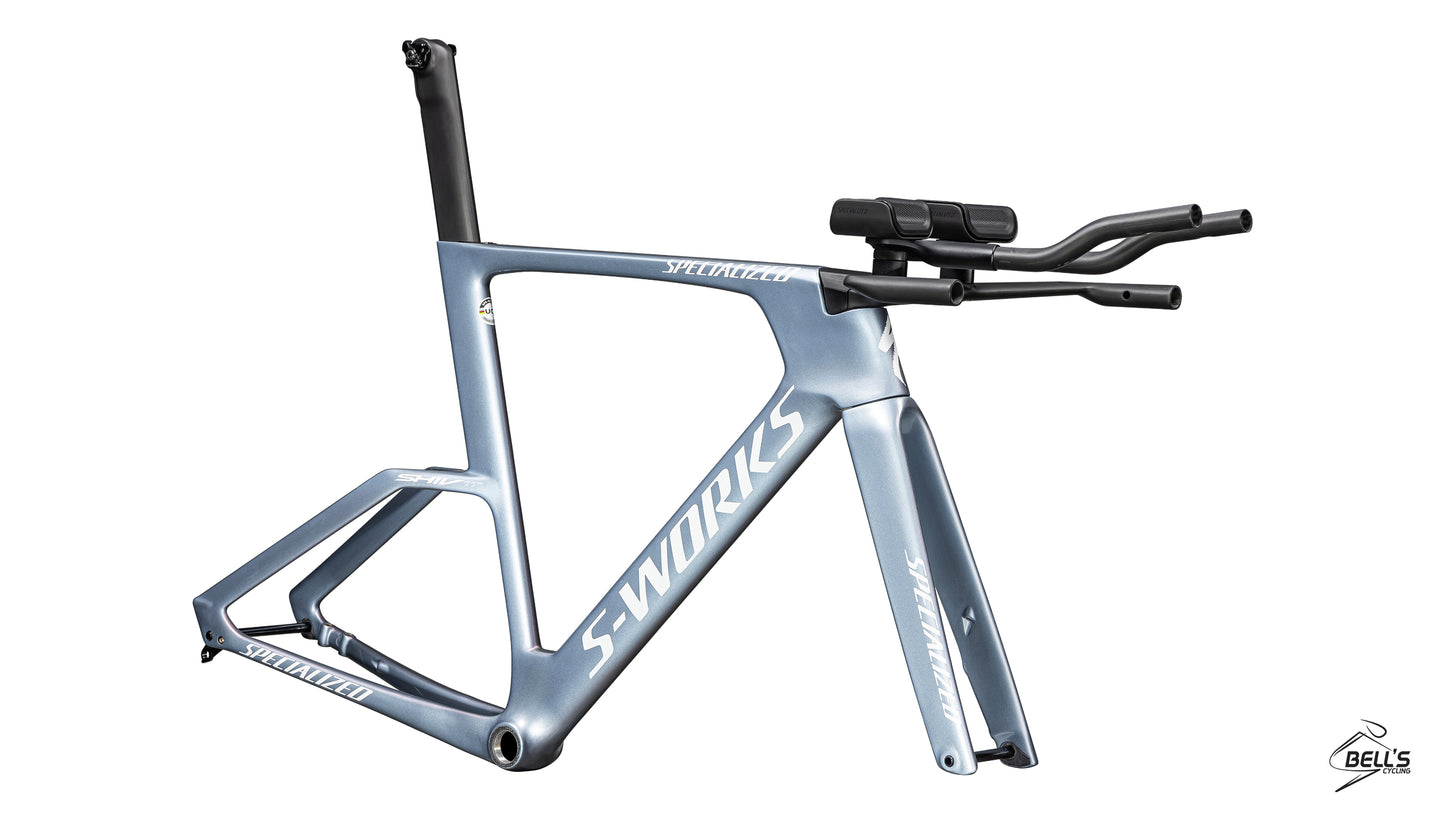

S-Works Shiv TT Disc Module

S-Works Shiv TT Disc Module

SKU:77425-0201

Regular price R 109,000.00
Regular price R 89,000.00 Sale price R 109,000.00
Sale Sold out
Taxes included.
Color
Size

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

S-Works Shiv TT Disc Module

For years, time trial bikes have had very similar attributes—skinny, deep airfoils, sketchy handling, subpar braking, and heavy frames. For the 'flat and fast' courses of yesteryear, these qualities may have been acceptable, but with today's technically demanding courses, TT bikes needed a change. And with this in mind, we've pushed UCI regulations to their limits adding disc brakes, dropping weight, and dialing in the fit for the new Shiv TT. Is it the most adjustable TT bike out there? Yeah, but don't think it gave anything up to aerodynamics. Here's to another decade of gold medals.

The S-Works Shiv TT Disc Module is the perfect canvas to start constructing your TT dream rig.

  • As time-trial courses have become more technical and demanding, it's important to capitalize on years of R&D and pro rider feedback to create the fastest time trial bike—for all courses. From technical inner-city prologues, to rolling courses with steep grades, it's not just about making the fastest bike for a straight line. With this in mind, we've cut the weight and greatly increased the handling characteristics of the Shiv TT with an all-new silhouette

  • Fit was also one of the biggest design pillars of the new Shiv TT. With years of Retül data, and professional rider data, we've completely re-done the geometry and front-end of the bike. The updated spacers, bridge, and armrests lock in fit, improving stability and confidence, while the one-piece bar and stem simplifies and lightens the weight of the front-end, balancing the overall feel.

  • Disc brakes are now a necessity in TTs with variable weather, tight corners, and rough surfaces. Not only do they let you late-brake into corners and shift on the bars, but they also create a more stable chassis in corners and when accelerating. And don't worry, they don't lend themselves to any additional drag.

View full details

Technical Specifications

Frameset

Frame

S-Works FACT 11r carbon, Win Tunnel Engineered, UCI Legal, internal electric only cable routing, BSA Threaded, 12x142mm thru-axle, flat-mount disc



Fork

S-Works FACT carbon, UCI Legal, 100x12mm thru-axle, flat-mount disc

Cockpit

SeatPost

2019 S-Works Venge aero seatpost, FACT carbon, Di2-compatible

Stem

Shiv TT Basebar with integrated stem cover

Seat Binder

Shiv TT integrated wedge

Handlebars

Specialized Shiv TT Integrated bar/stem aerobar

Product Details

Product ID

221549

Weight

Weight

2.69 kg (5 lb, 14.9 oz)

Weight Size

MD

Geometry

 XSSML
Handlebar Width400400400400
Stem Length75757575
Seatpost Length390390390390
Effective Reach to Center of Pad, REARWARD Position436448463478
Effective Stack to Pad Holder, HIGHEST Position680690690690
Trail70636363
Stack485495495495
Fork Length (full)363363363363
Top-Tube Length (horizontal)512527538546
Seat-Tube Length504564563562
Reach378390405420
Head-Tube Angle71727272
B-B Drop70727272
Front-Center573579594609
Head-Tube Length90959595
Chain-Stay Length410410410410
Effective Stack to Pad Holder, LOWEST Position535545545545
Bike Stand-Over Height769802802802
Effective Reach to Center of Pad, FORWARD Position464476491506
B-B Height269270270270
Wheelbase9729789931008
Fork Rake/Offset45454545
Seat-Tube Angle74.574.57575.75
