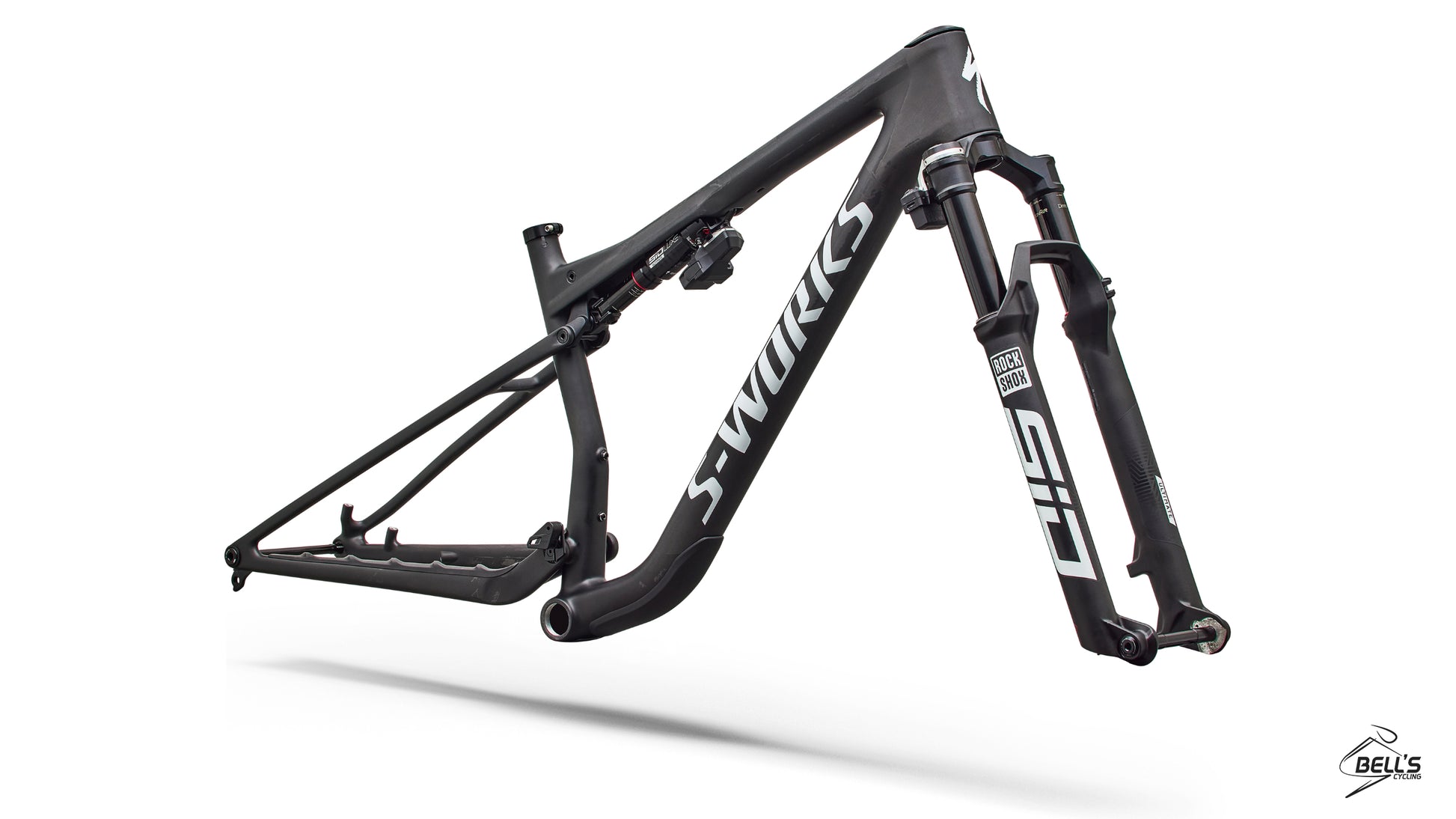

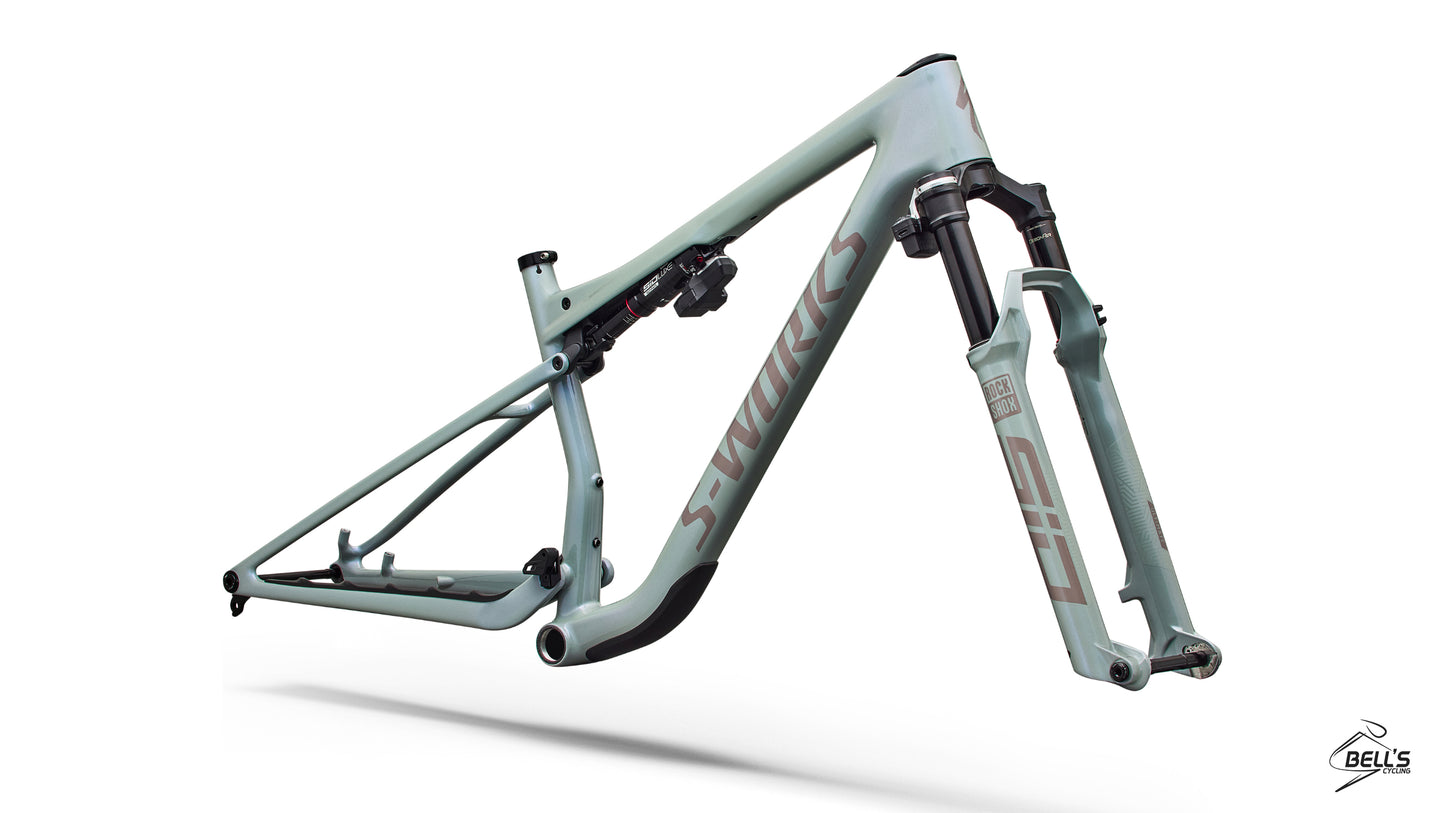

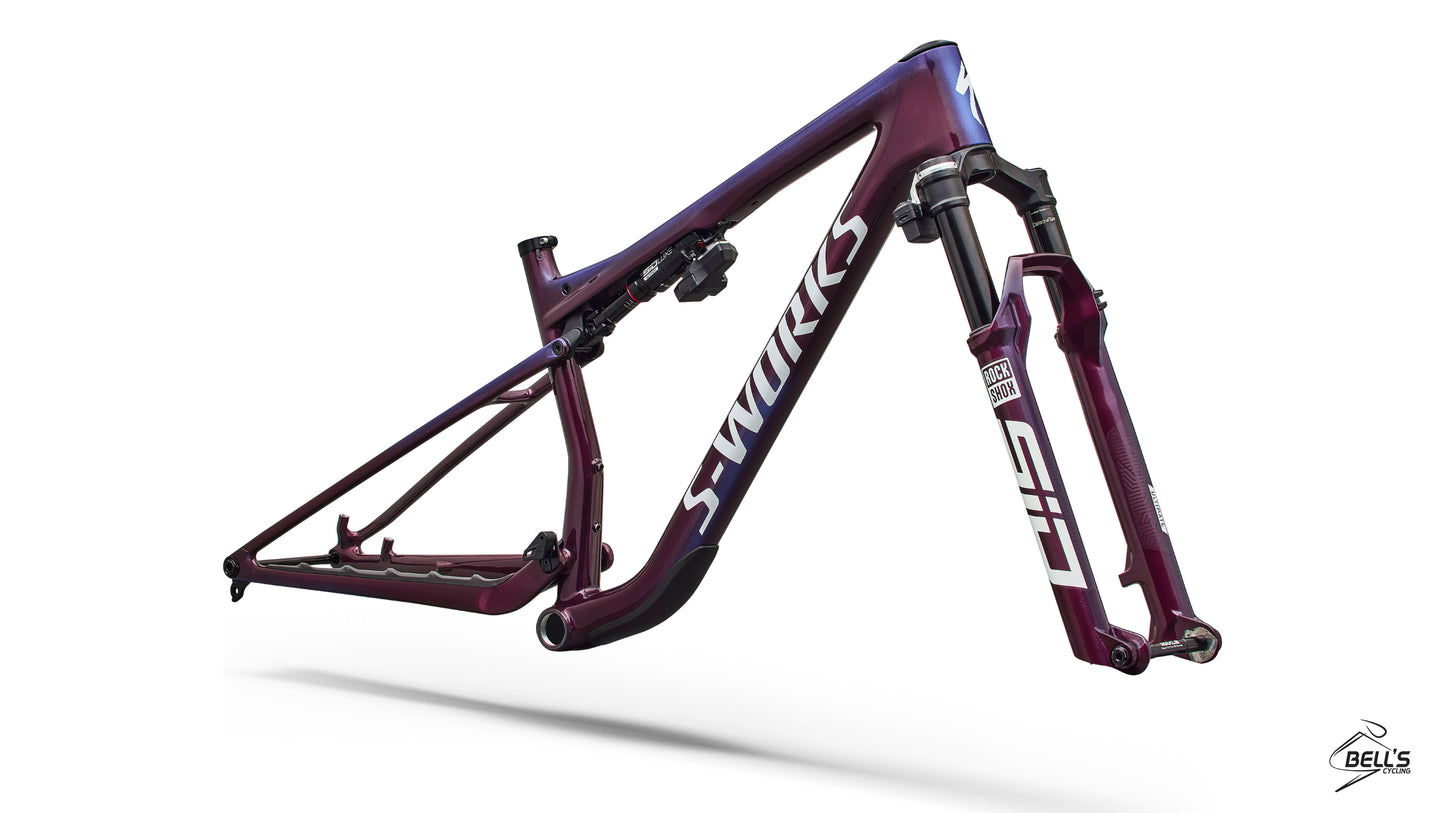

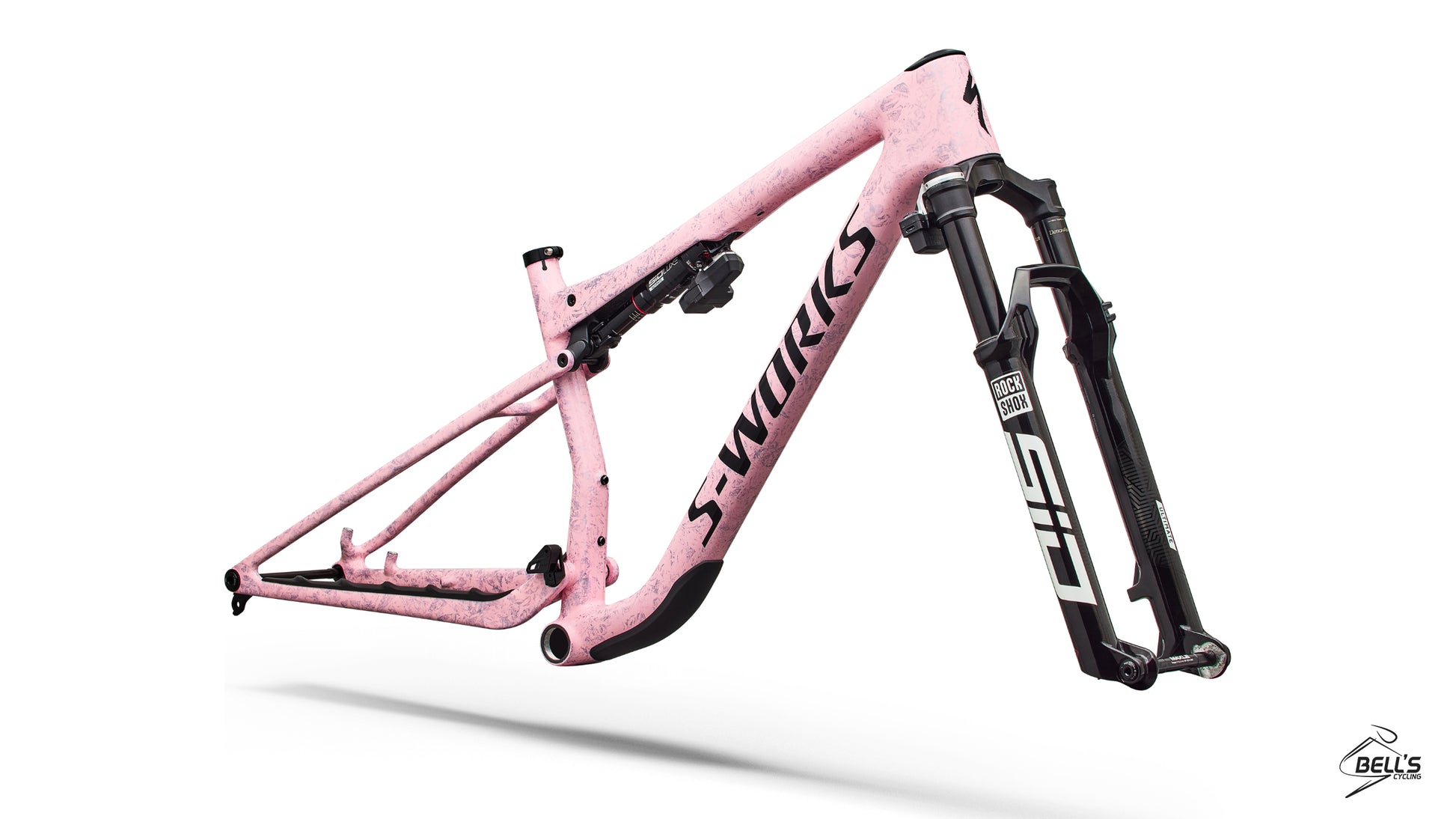

S-Works Epic 9 Frameset
S-Works Epic 9 Frameset
SKU:70327-0602
Pay over 2-6 interest-free instalments with Stitch BNPL
Out of stock
Couldn't load pickup availability
Evolution of the Fastest
The Lightest, Fastest, Most Capable XC Race Bike Ever
Epic 9 represents 24 years of winning XC innovation, distilled into the fastest race bike in the world.<br>We started with Epic 8’s world-beating benchmark. Then removed what held it back. 206 grams gone, making Epic 9 the lightest full-suspension XC race bike on the planet.<br>Then we cut suspension friction by 11% and refined the kinematics. The result: unmatched efficiency, capability, and speed per watt.<br>Speed emerges as the natural outcome of a bike so seamlessly integrated around the rider that it disappears, leaving only the rider’s full potential, realized.
At a Glance
Use
XC Racing
Frame
S-Works FACT 12m Carbon, Progressive XC Race Geometry, 120mm of travel
Suspension
Front: RockShox SID Ultimate Flight Attendant<br>Rear: RockShox SIDLuxe Ultimate Flight Attendant
Weight
7 lbs. 11.1 oz. (3.49 kg) (fork included)
Share
Technical Specifications
Frameset
Frame
S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain
SWAT
SWAT Box 2.0
Seat Binder
Specialized Alloy 34.9, Ti Bolt
Suspension
Fork
RockShox SID ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel
Rear Shock
RockShox SIDLuxe ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Solo Air, 190x45mm
Product Details
Product ID
274035
Weight
Weight
3.49 kg (7 lb, 11.1 oz)
Weight Size
MD
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 594 | 604 | 618 | 645 |
| Reach (Low) | 420 | 450 | 480 | 505 |
| Reach (High) | 425 | 455 | 485 | 510 |
| Head-Tube Length | 92 | 105 | 120 | 150 |
| Head-Tube Angle (Low) | 65.9 | 65.9 | 65.9 | 65.9 |
| Head-Tube Angle (High) | 66.3 | 66.3 | 66.3 | 66.3 |
| B-B Height | 333 | 335 | 335 | 335 |
| B-B Drop (Low) | 42 | 40 | 40 | 40 |
| B-B Drop (High) | 37 | 35 | 35 | 35 |
| Trail | 120 | 120 | 120 | 120 |
| Fork Length (full) | 531 | 531 | 531 | 531 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Front Center | 716 | 752 | 788 | 823 |
| Chain-Stay Length | 435 | 435 | 438 | 442 |
| Wheelbase | 1148 | 1184 | 1223 | 1264 |
| Top-Tube Length (horizontal) | 568 | 601 | 634 | 666 |
| Frame Stand-Over Height | 749 | 755 | 757 | 764 |
| Seat-Tube Length | 390 | 410 | 455 | 505 |
| Seat-Tube Angle | 76 | 76 | 76 | 76 |
| Seat Post Max Insertion | 190 | 220 | 260 | 315 |
| Seat Post Min Insertion | 80 | 80 | 80 | 80 |
| Saddle Height for Effective STA | 690 | 735 | 780 | 825 |
