SPECIALIZED

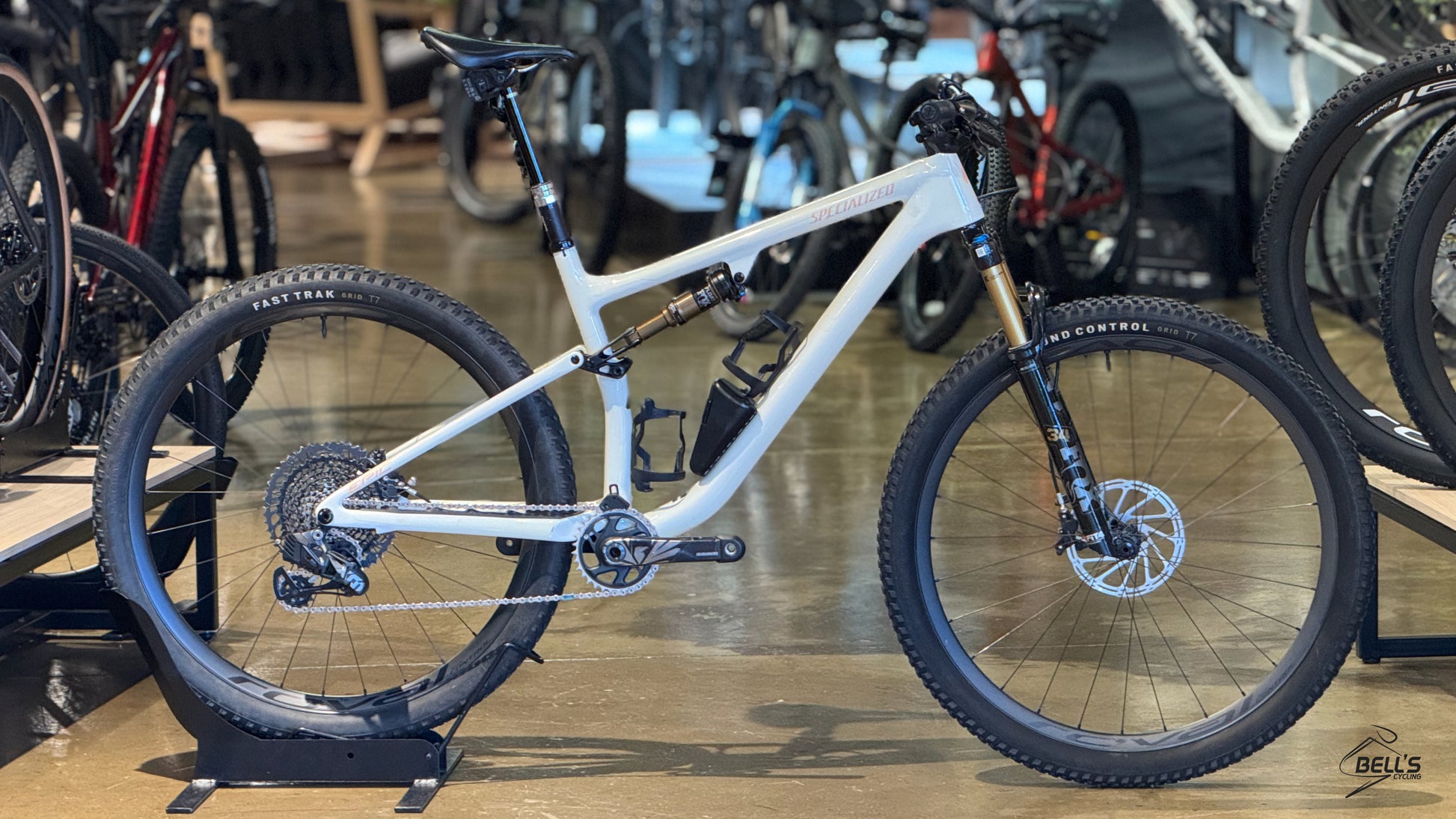

Epic EVO Pro Used Large
Epic EVO Pro Used Large
SKU:94823-1004
CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY
CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY
Bell's Cycling
Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200
Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed
Couldn't load pickup availability
Share

Technical Specifications
Frame
FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel

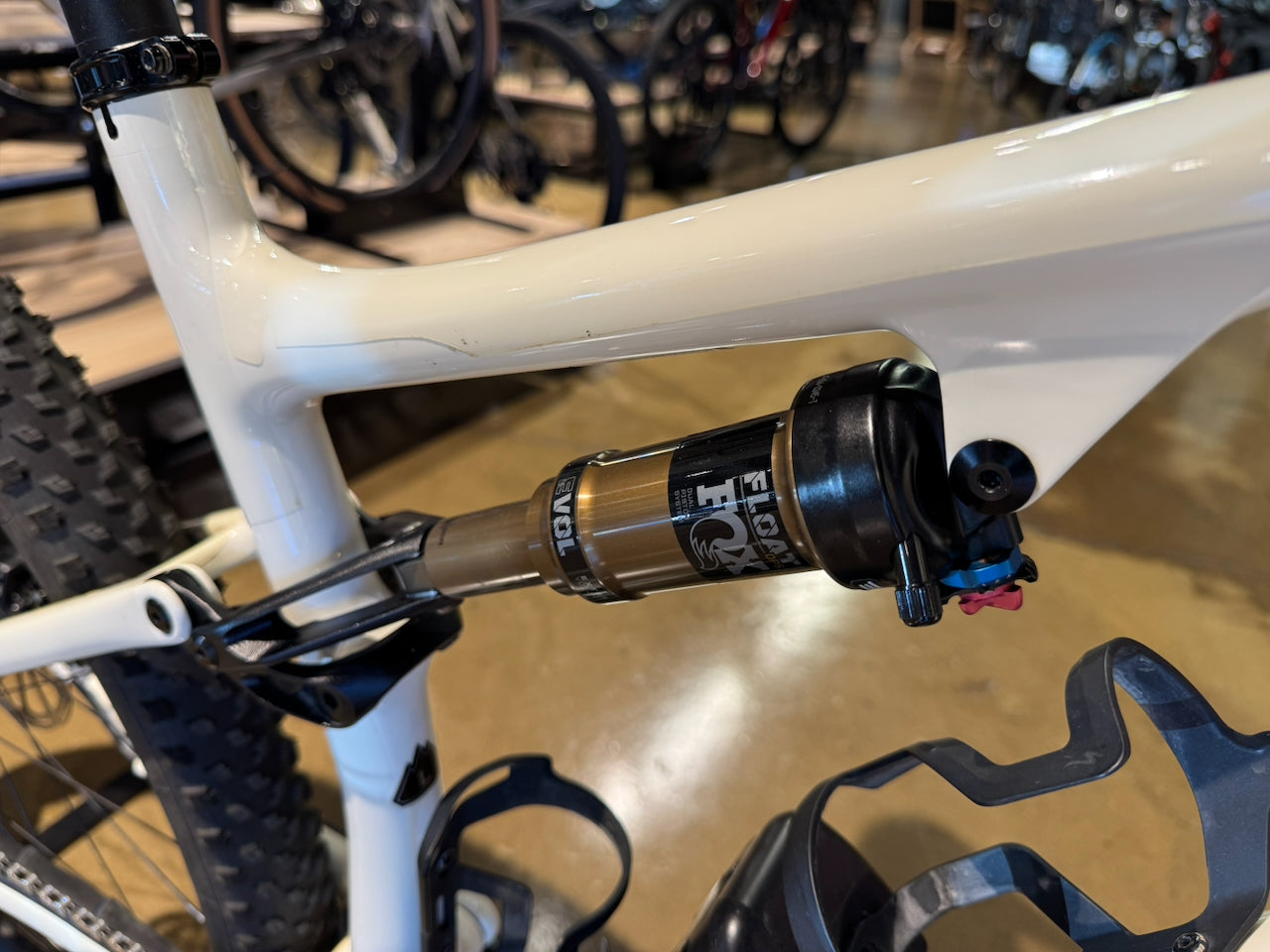

Rear Shock
FOX FLOAT DPS Factory, Rx XC Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x40mm

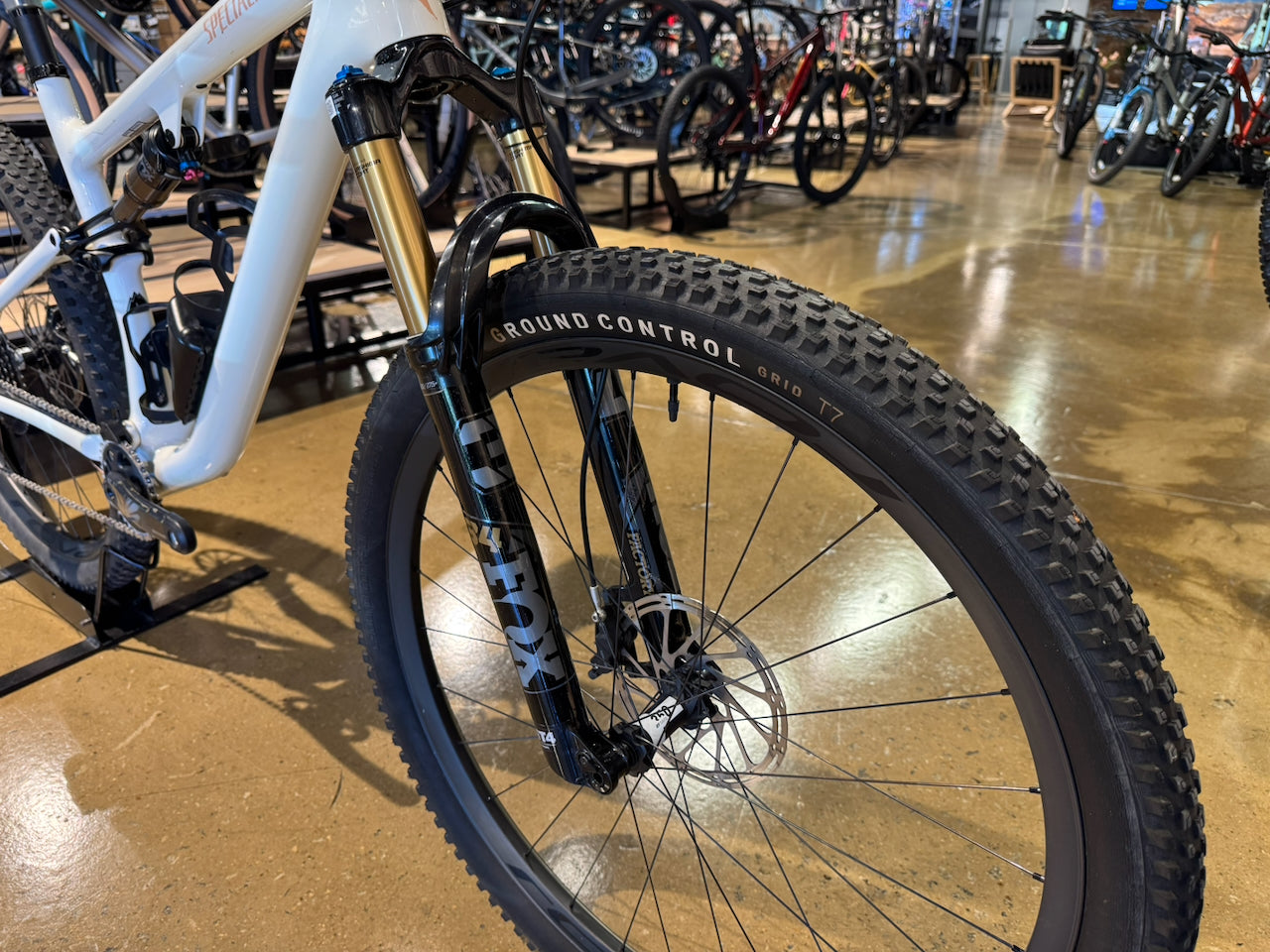

Fork
FOX FLOAT 34 Factory, Fit4 damper, Kashima Coating, 15x110mm, 44mm offset, 120mm of travel

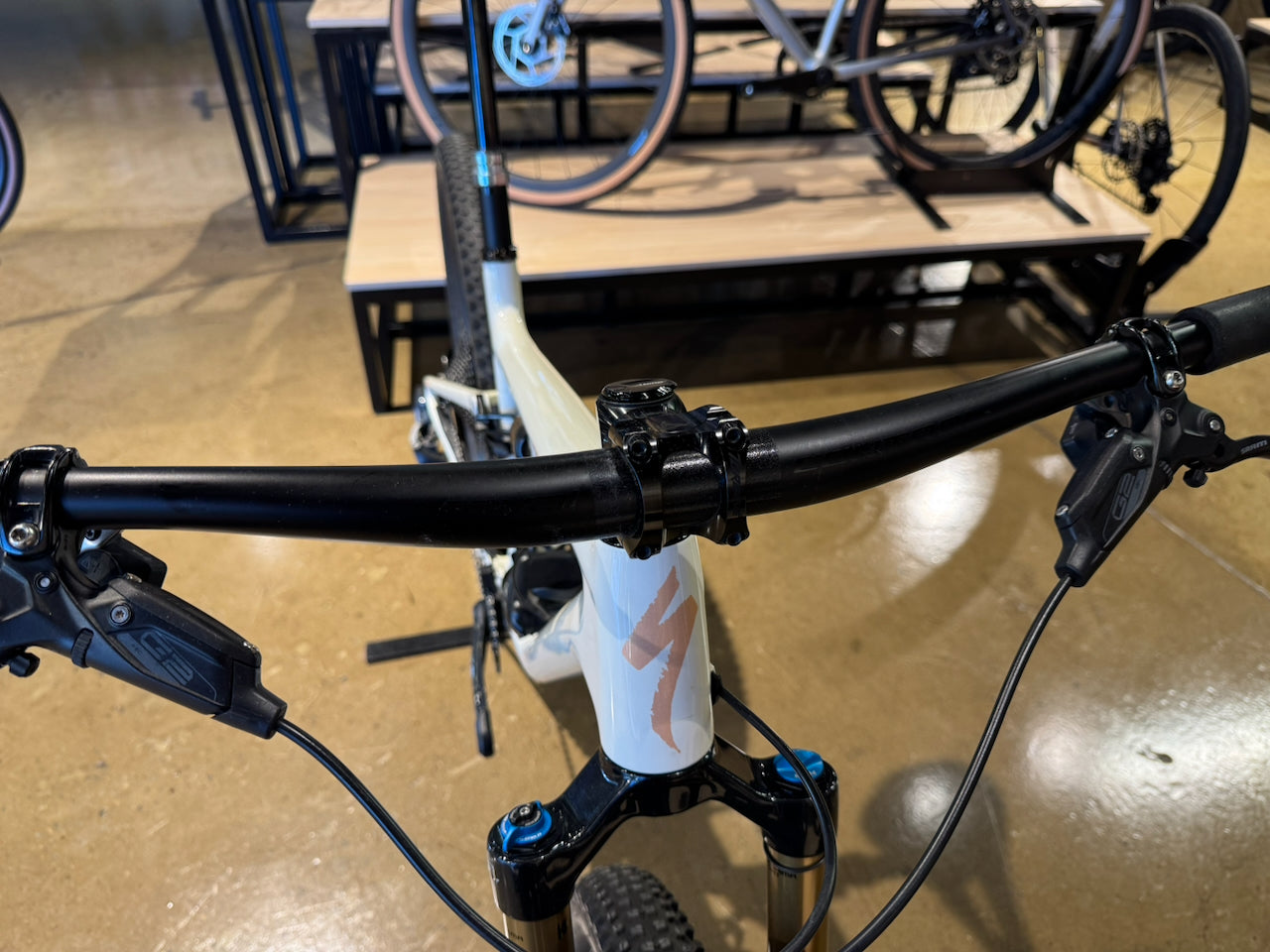

Stem
Race Face Turbine R, 60mm, 35mm clamp

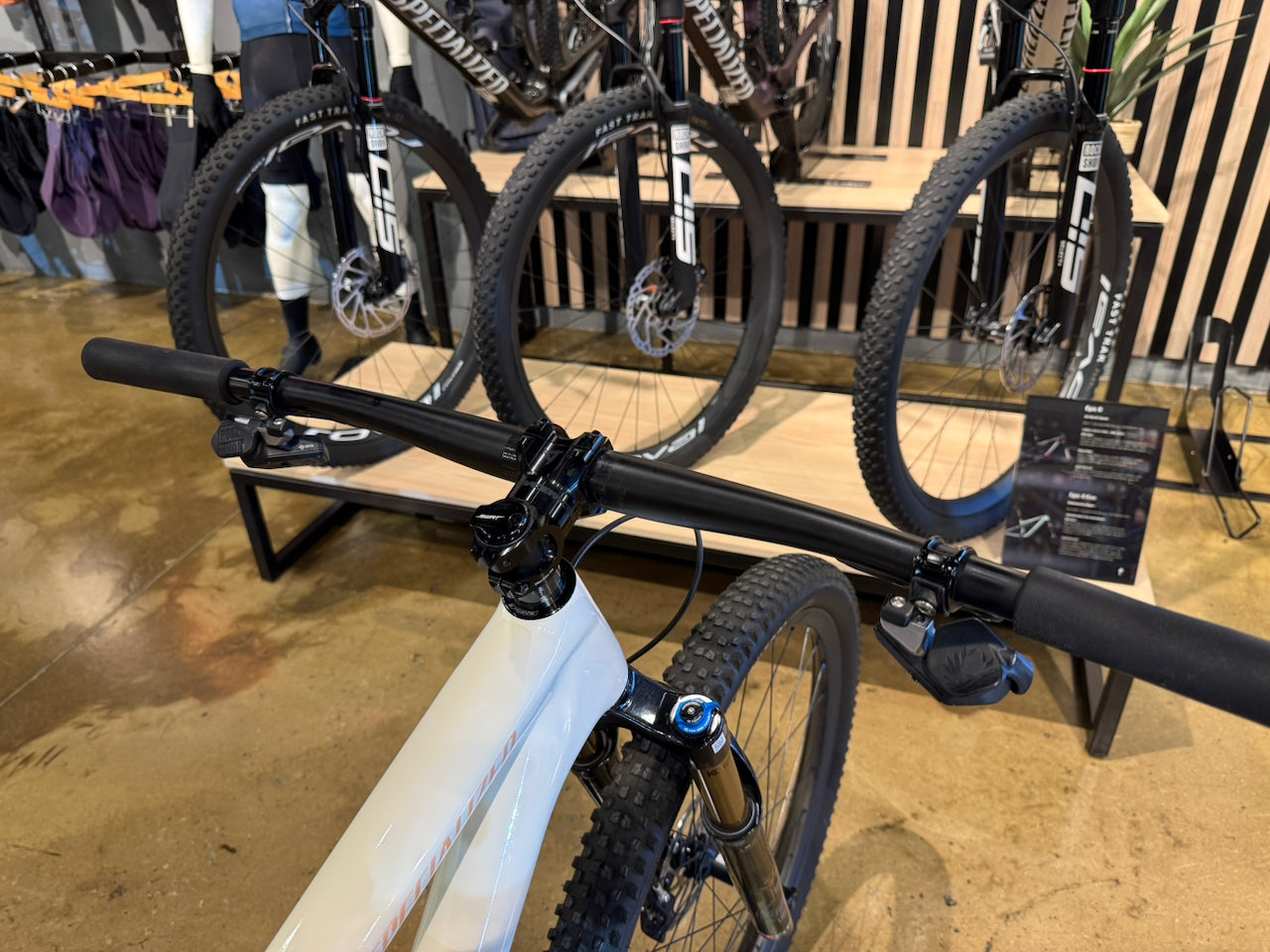

Handlebars
Roval Control Rise Carbon Handlebar, 760mm wide, 20mm rise, 35mm

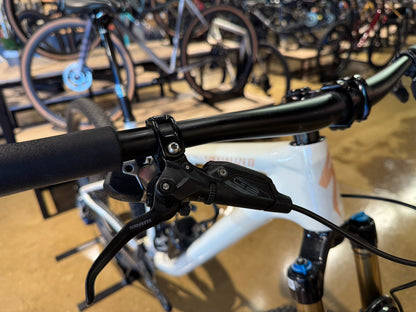

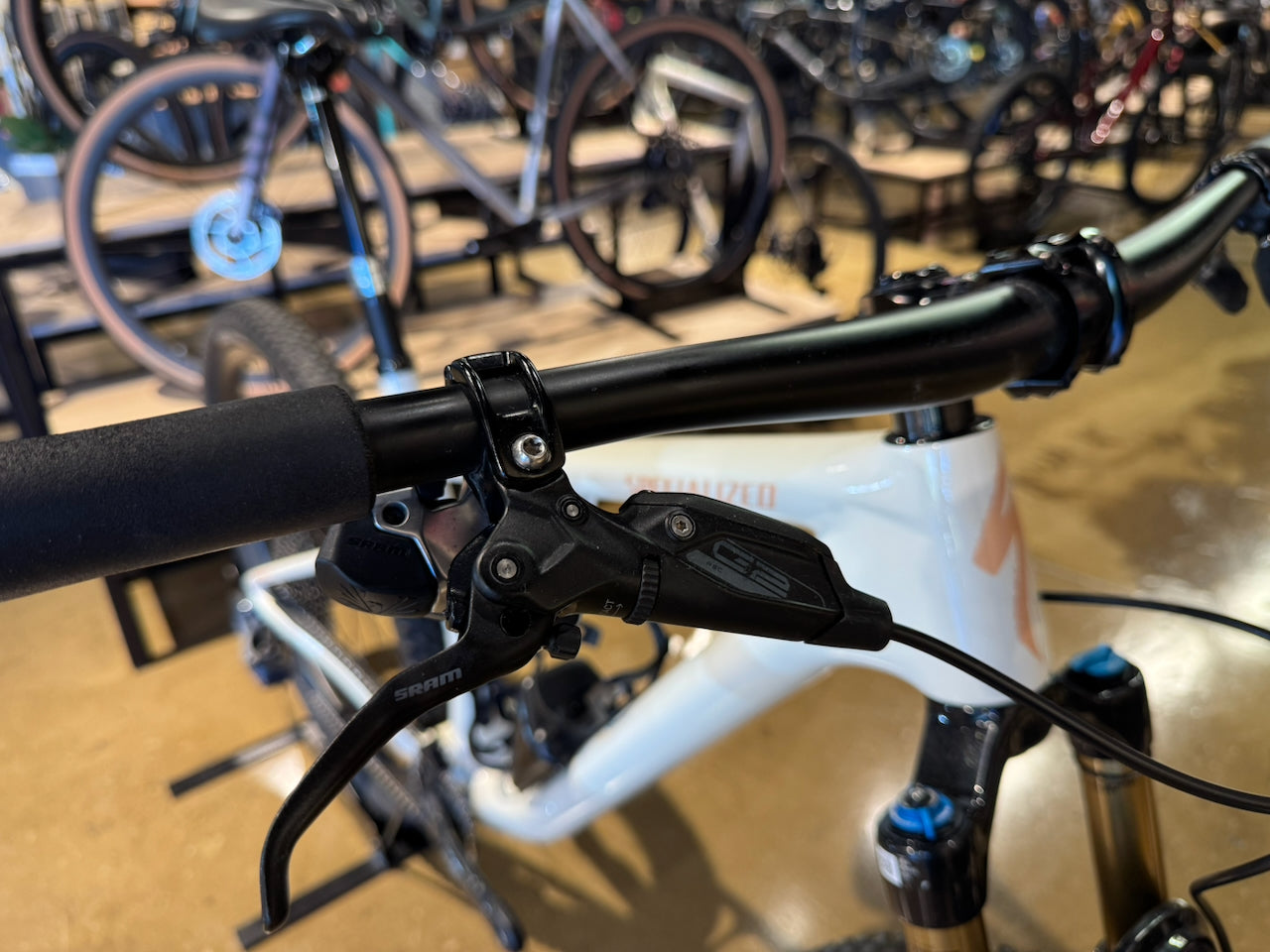

Front Brake
SRAM G2 RSC, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
SRAM G2 RSC, 4-piston caliper, hydraulic disc, 180mm rotor
Shift Levers
SRAM Eagle AXS Rocker Paddle

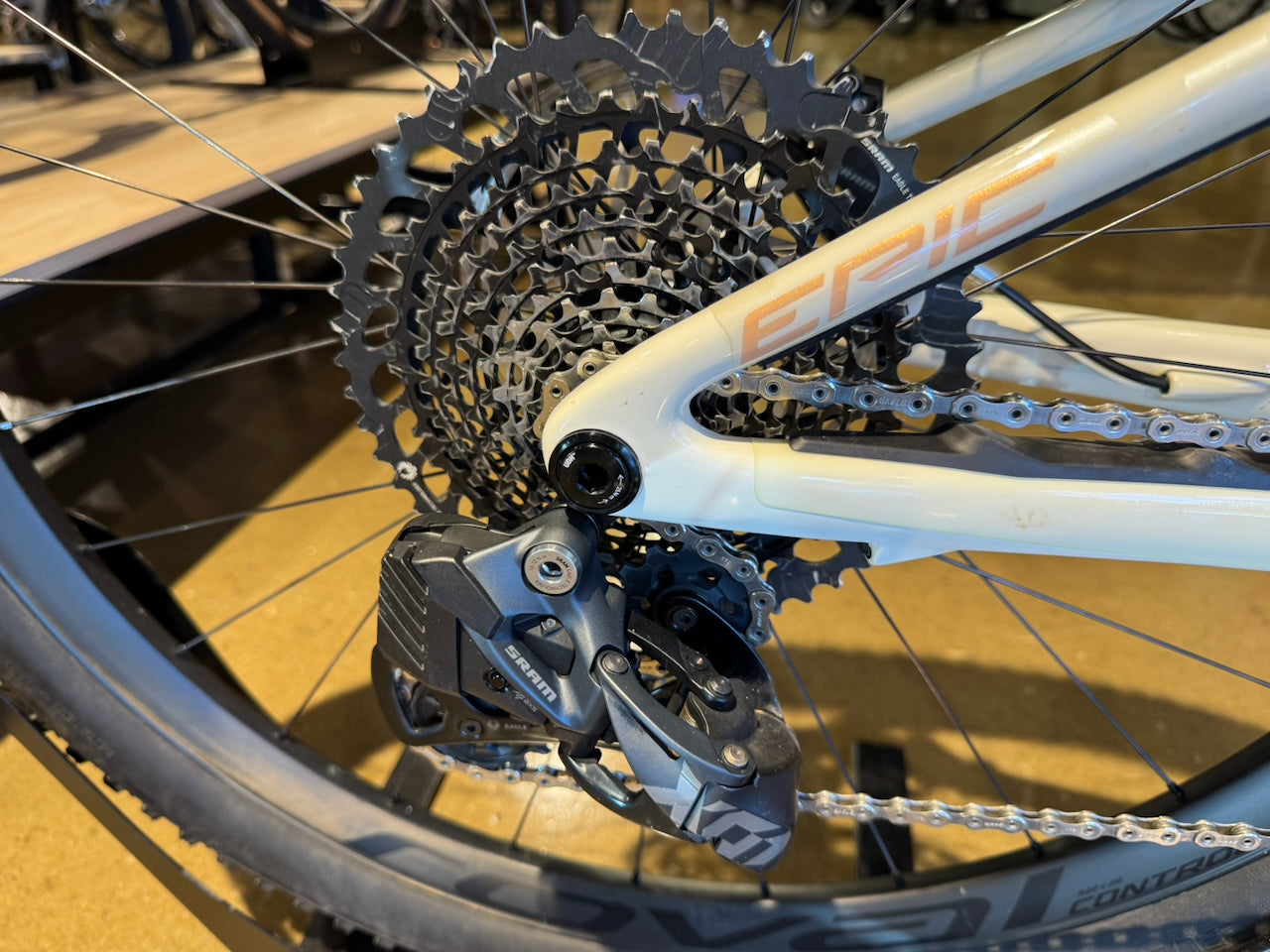

Rear Derailleur
SRAM X01 Eagle AXS
Cassette
SRAM XG-1295 Eagle, 10-52t
Chain
SRAX X01 Eagle, 12-speed

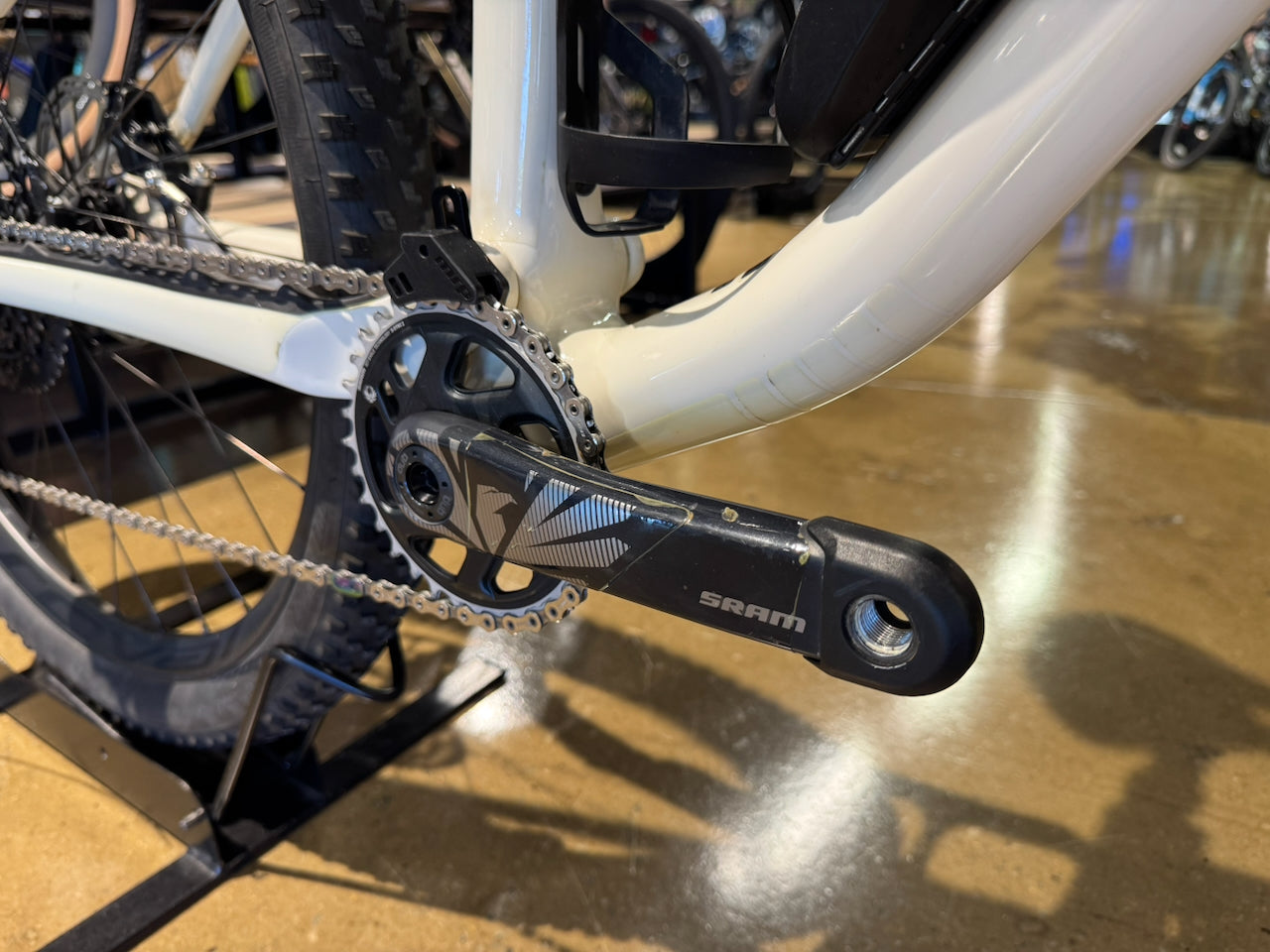

Crankset
SRAM X1 Carbon, DUB, 175mm
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Rims
Roval Control, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 28h
Front Hub
DT Swiss 350, 6-bolt, 15mm Thru-axle, 110mm spacing, 28h straight -pull
Rear Hub
DT Swiss 350 straight-pull, 6-bolt, DT Swiss Ratchet, 12x148mm thru axle, XD freehub body, 28h straight-pull
Spokes
DT Swiss Comp Race
Front Tire
Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35
Rear Tire
Specialized Fast Trak, GRID Casing, T7 Compound, 29x2.35
Inner Tubes
Specialized Turbo Tube

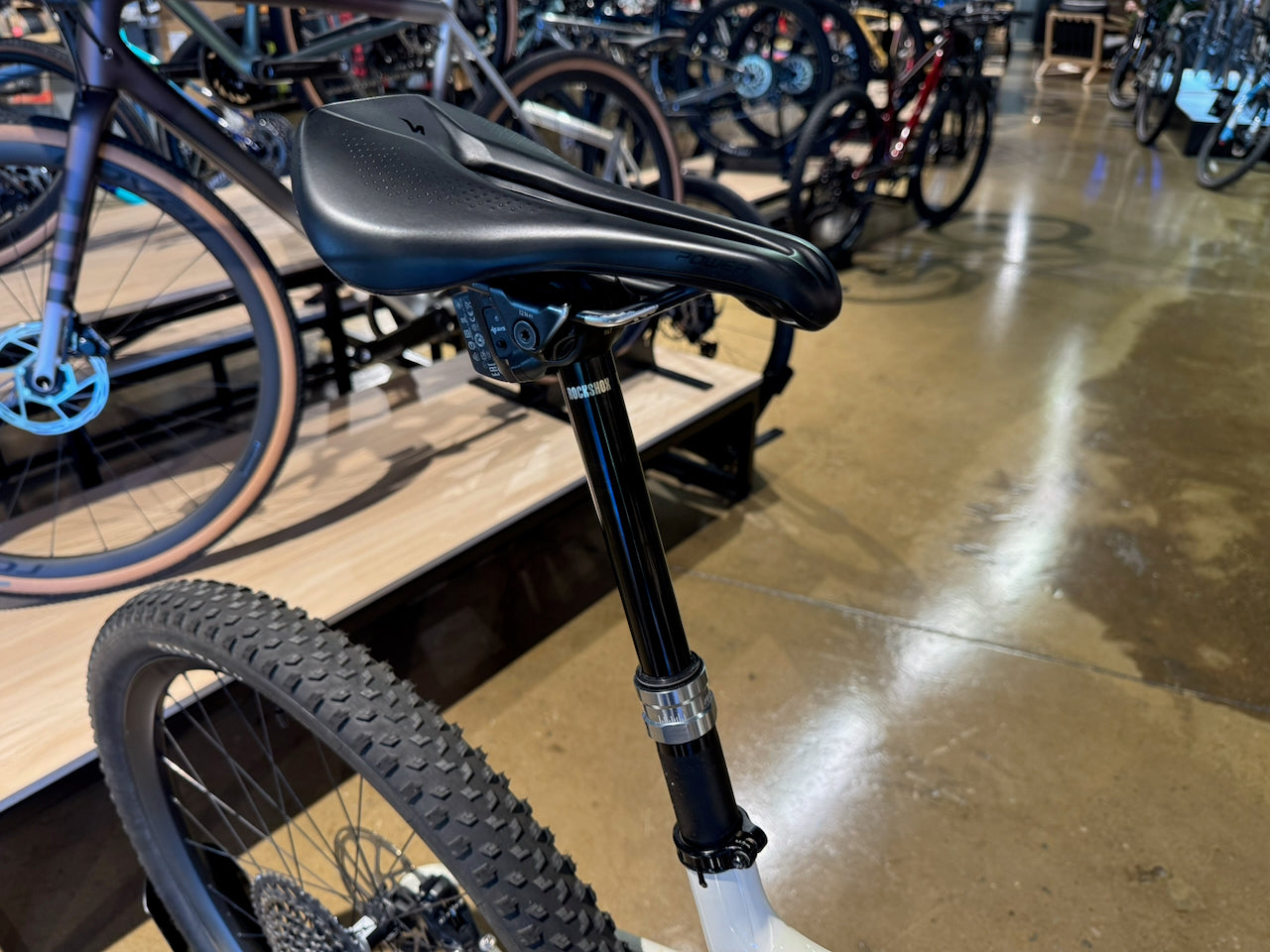

SeatPost
RockShox Reverb AXS 150mm drop
Saddle
Body Geometry Power Expert, titanium rails
Seat Binder
Specialized Alloy, 34.9mm
SWAT
SWAT CC steerer tube integrated tool with chain tool and link, detachable SWAT box
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 60mm | 60mm | 60mm | 60mm |
| Handlebar Width | 760mm | 760mm | 760mm | 760mm |
| Seatpost Length | 125mm | 150mm | 150mm | 175mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Stack | 593mm | 597mm | 611mm | 629mm |
| Reach | 406mm | 436mm | 460mm | 485mm |
| Head Tube Length | 95mm | 100mm | 115mm | 135mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| BB Height | 336mm | 336mm | 336mm | 336mm |
| BB Drop | 36mm | 36mm | 36mm | 36mm |
| Trail | 114mm | 114mm | 114mm | 114mm |
| Fork Length, Full | 530mm | 530mm | 530mm | 530mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Front Center | 697mm | 729mm | 759mm | 792mm |
| Chainstay Length | 438mm | 438mm | 438mm | 438mm |
| Wheelbase | 1132mm | 1164mm | 1194mm | 1227mm |
| Bike Standover Height | 779mm | 781mm | 793mm | 804mm |
| Seat Tube Length | 400mm | 430mm | 470mm | 520mm |
| Seat Tube Angle | 74.8° | 74.5° | 74.5° | 74.5° |
| Top Tube Length, Horizontal | 567mm | 602mm | 629mm | 659mm |
Size Guide
