SPECIALIZED

Crux 5 S-Level

SKU:91427-1049

R 210,000.00

~~R 210,000.00~~ R 210,000.00

Sale Sold out

Taxes included.

Color Redwood Metallic/white

Size 49 52 54 56 58 61

Quantity

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

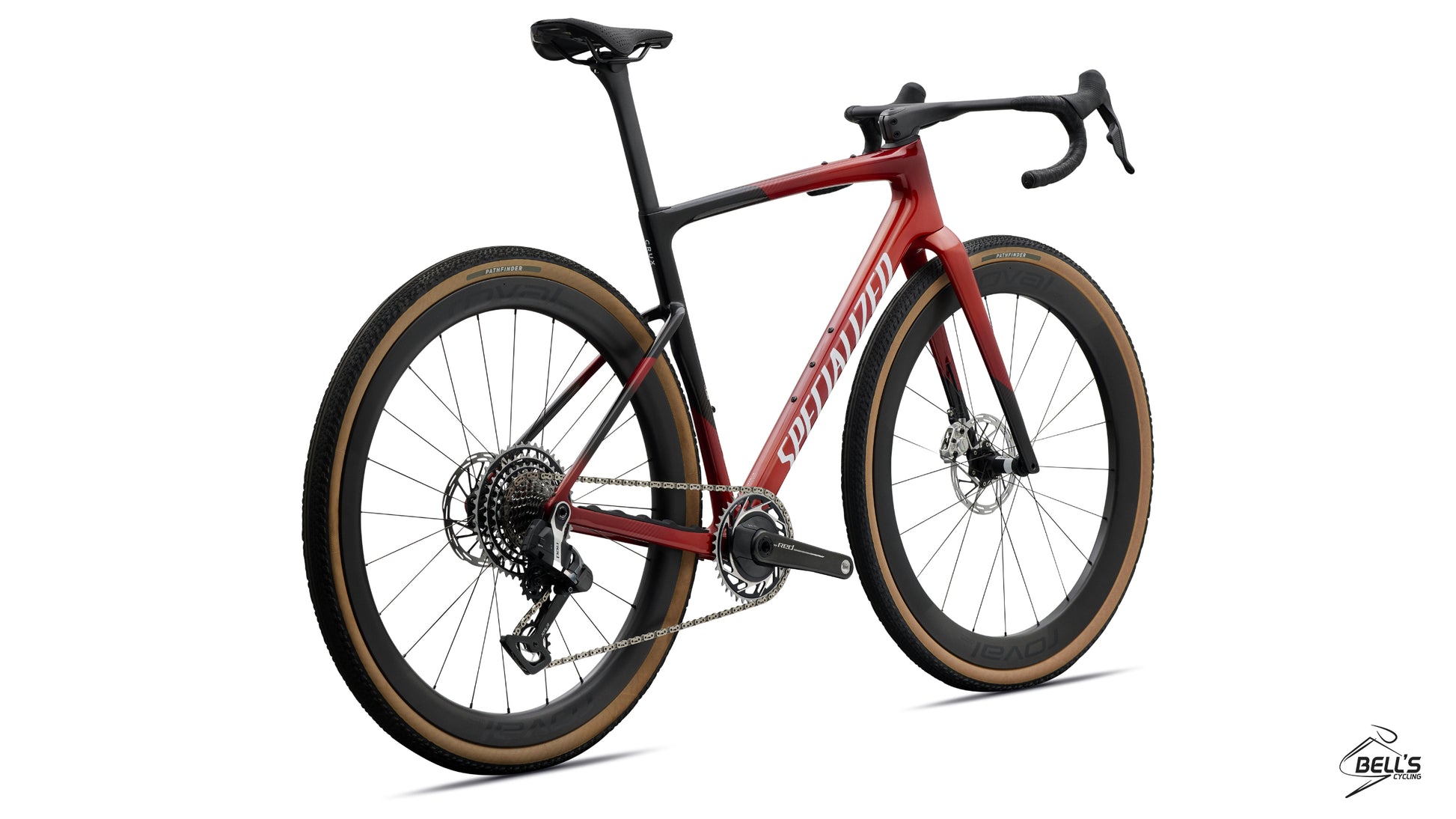

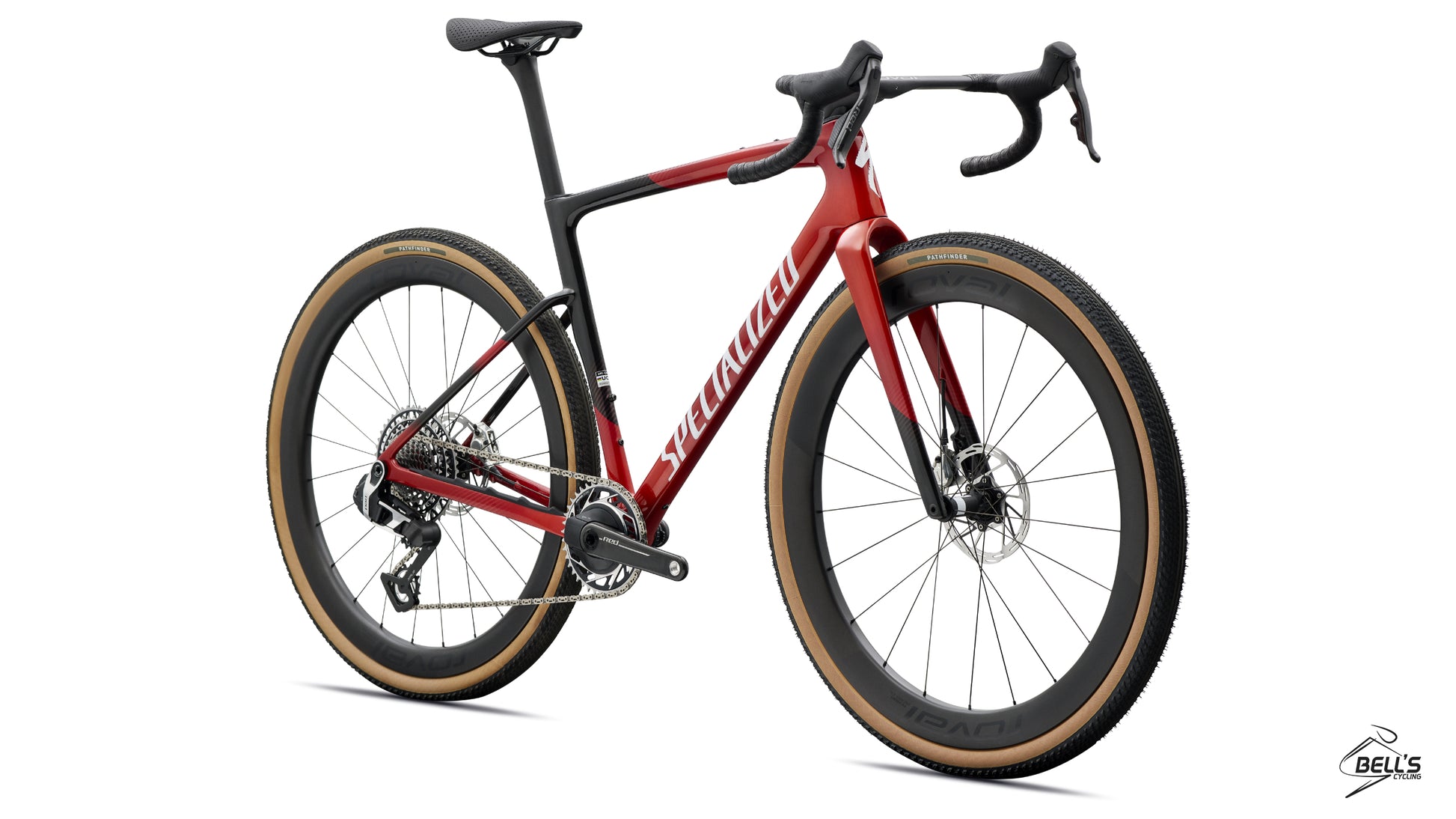

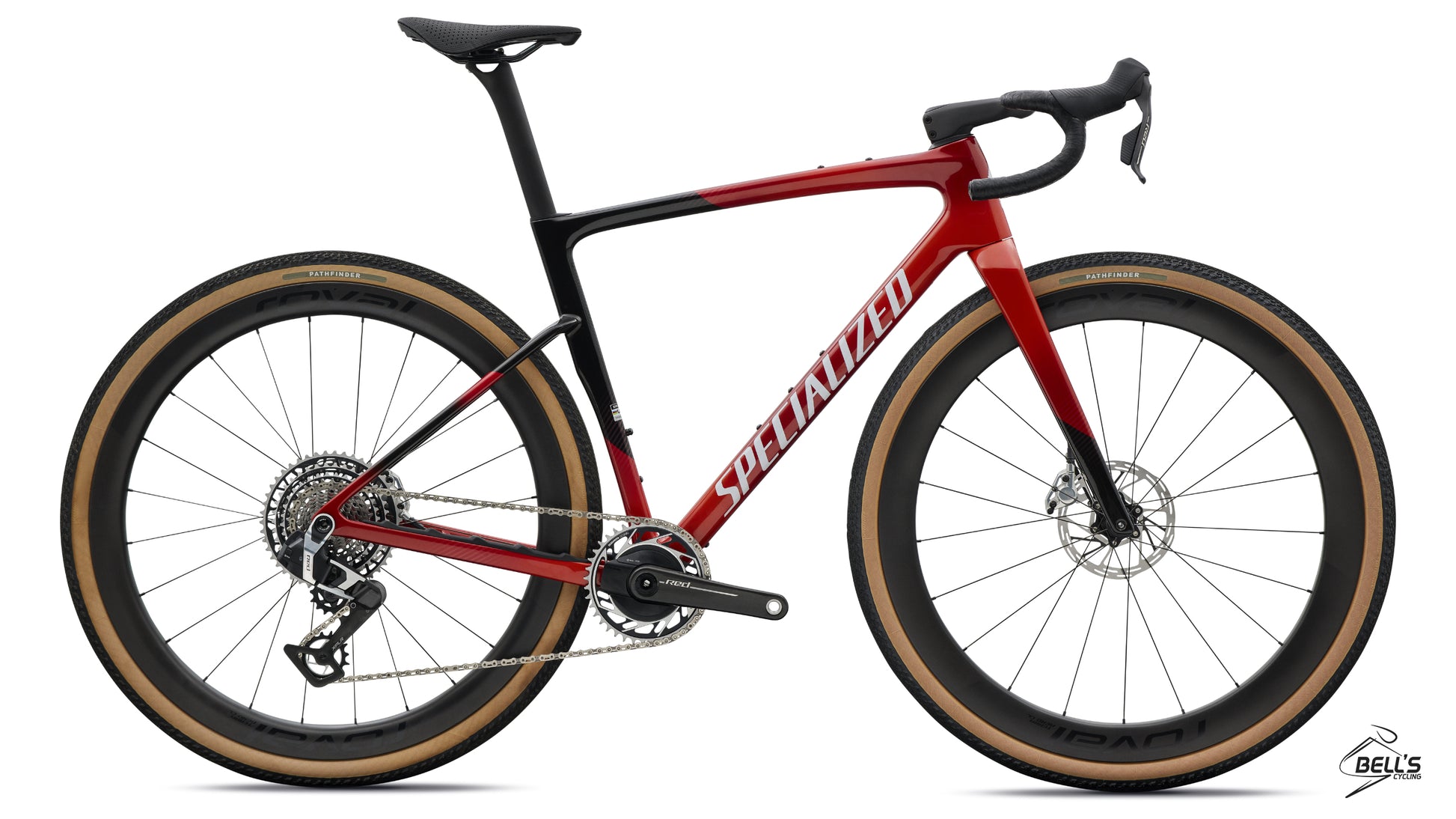

Crux 5 S-Level

Eat My Dust

The Crux 5 S-Level was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

At a Glance

Use

Gravel Racing

Frame

FACT 10r Carbon: 897 grams

Wheels

Roval Terra Aero CL

Cockpit

Roval Terra Integrated

Drivetrain

SRAM RED XPLR

Weight

7.7 kg

View full details

Technical Specifications

Frameset

Frame

Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake

SRAM RED E1, hydraulic disc

Rear Brake

SRAM RED E1, hydraulic disc

Drivetrain

Bottom Bracket

SRAM DUB BSA 68 Wide

Shift Levers

SRAM RED AXS E1, hydraulic disc

Rear Derailleur

SRAM RED AXS XPLR E1, 13-speed

Chain

SRAM RED E1

Cassette

SRAM RED XPLR E1, 13-speed, 10-46t

Crankset

SRAM RED XPLR E1, Quarq power meter, 40t

Wheels & Tires

Inner Tubes

700x32-50mm, 60mm Presta valve

Front Wheel

Roval Terra Aero CL, 27mm internal width, tubeless ready, 50mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes

Rear Wheel

Roval Terra Aero CL, 27mm internal width, tubeless ready, 45mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes

Front Tire

Pathfinder 700x45, Tubeless Ready

Rear Tire

Pathfinder 700x45, Tubeless Ready

Cockpit

Stem

Included in Handlebar

SeatPost

S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Saddle

Power Pro Mirror, Hollow Ti rails

Handlebars

Roval Terra Cockpit, Integrated Bar/Stem

Tape

Supacaz Super Sticky Kush

Seat Binder

Integrated Wedge

Product Details

Product ID

294829

Weight

Weight Size

Weight

7.7 kg (16 lb, 15.6 oz)

Geometry

	49	52	54	56	58	61
Crank Length	165	165	170	170	172.5	172.5
Handlebar Width	380	380	400	400	420	420
Stem Length	75	90	90	100	100	100
Saddle Width	155	155	143	143	143	143
Seatpost Length	300	300	380	380	380	380
Stack	530	547	560	578	598	621
Reach	375	382	388	400	412	425
Head Tube Length	95	110	125	142	163	188
Head Tube Angle	70.5	70.75	71	71.5	71.5	71.5
BB Height	278	278	280	280	280	280
BB Drop	80	80	78	78	78	78
Trail	72	71	69	66	66	66
Fork Length, Full	401	401	401	401	401	401
Fork Rake/Offset	51	51	51	51	51	51
Front Center	594	604	613	626	644	665
Chainstay Length	425	425	425	425	425	425
Wheelbase	1008	1016	1026	1039	1057	1078
Top Tube Length, Horizontal	512	534	543	566	583	603
Bike Standover Height	753	766	781	803	823	849
Seat Tube Length	445	456	473	497	515	545
Seat Tube Angle	75.5	74.5	74.5	74	74	74
